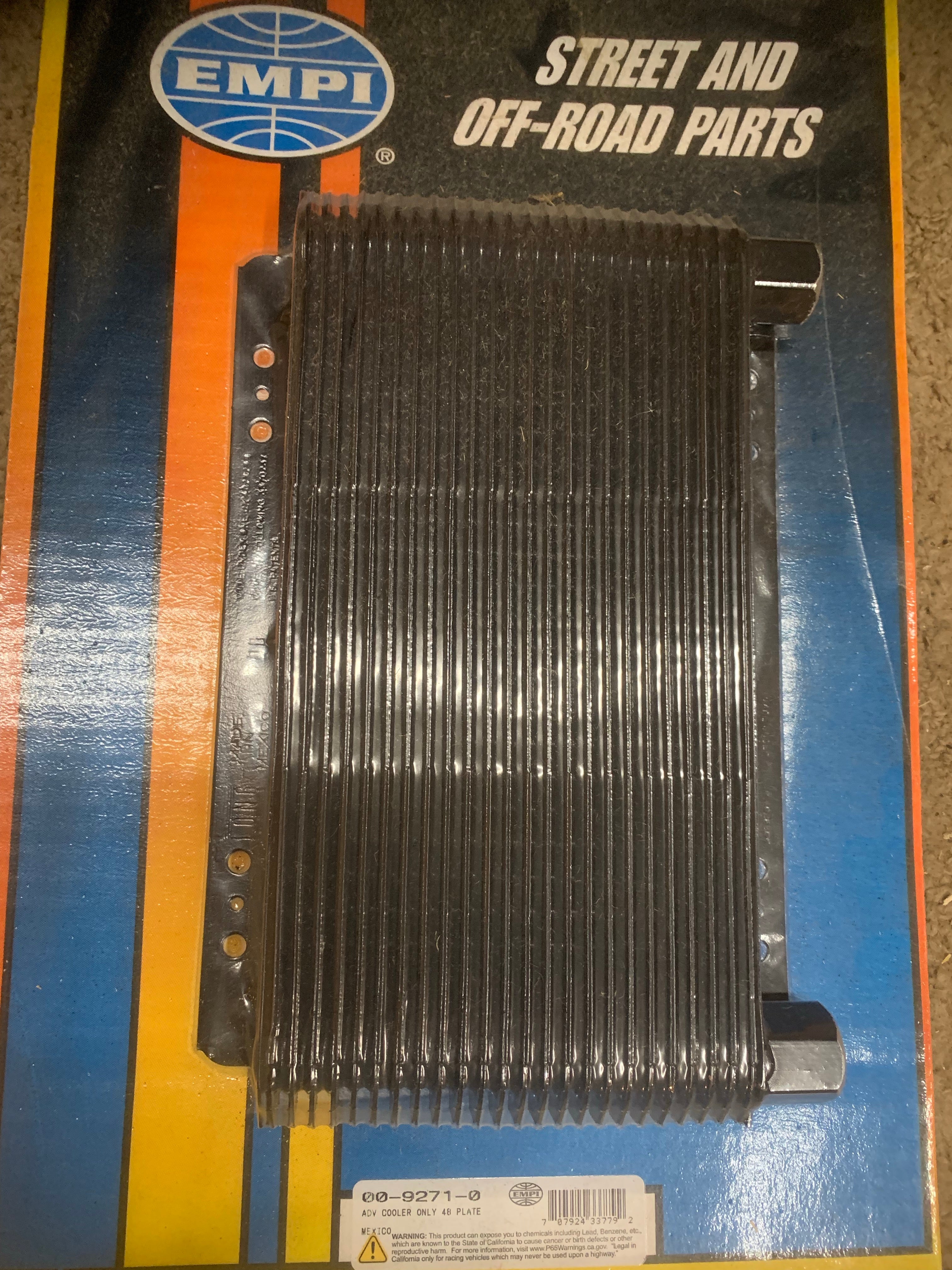

Oil Cooler, 48 plate

48 plate Oil Cooler

State of the art in cooling technology. Increases cooling efficiency by 30% thin compact design is only 1 1/2 inches thick x 5 3/4 inches inches x 11 inches .

Fitted with 1/2 inches female pipe thread fittings.

Mounting dampers are recommended # ac117130 set of 4.

Length: 11 inches
Width: 1 1/2 inches
Plate Quantity: 48
Oil Cooler Element 48 Plate Mesa Style

Inlet / Outlet: 1/2" NPT
Designed For Racing And Heavy Duty Applications
Can Be Used For ATF Cooling
Can Be Used For Engine, Transmission, Rear Differential Oil Cooling
Can Be Use For Power Steering Fluid Cooling
Efficient Stacked Plate Design
Pressure Tested To 200 PSI
1/2" NPT Fittings Easily Adaptable To AN Fittings

 Note: It Is Important To Use Anti-Seize Lubricant And Not Over Tighten When Installing Any Fittings Into The Mesa Oil Cooler.
It Is Very Important To Secure Oil Cooler Fitting With 1" Wrench When Gently Tightening Down Fitting.
Failure To Do So Will Result In Permanent Damage Voiding All Warranties.

Our Reference: 00-9271-0
Located: Row 4-14
