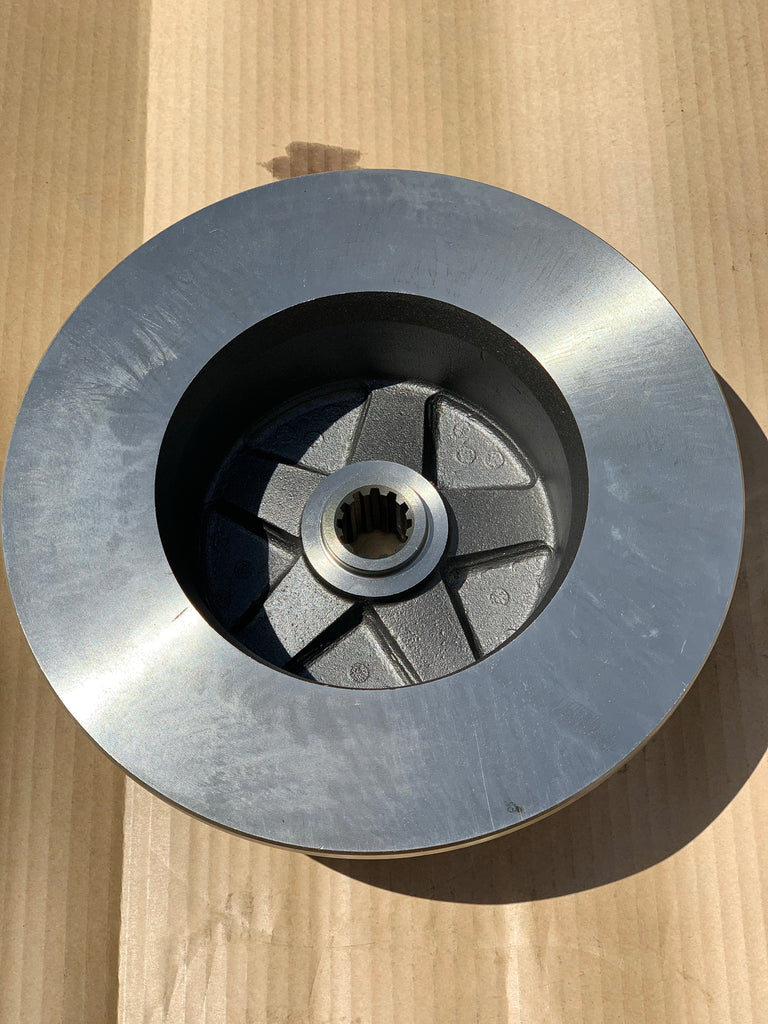

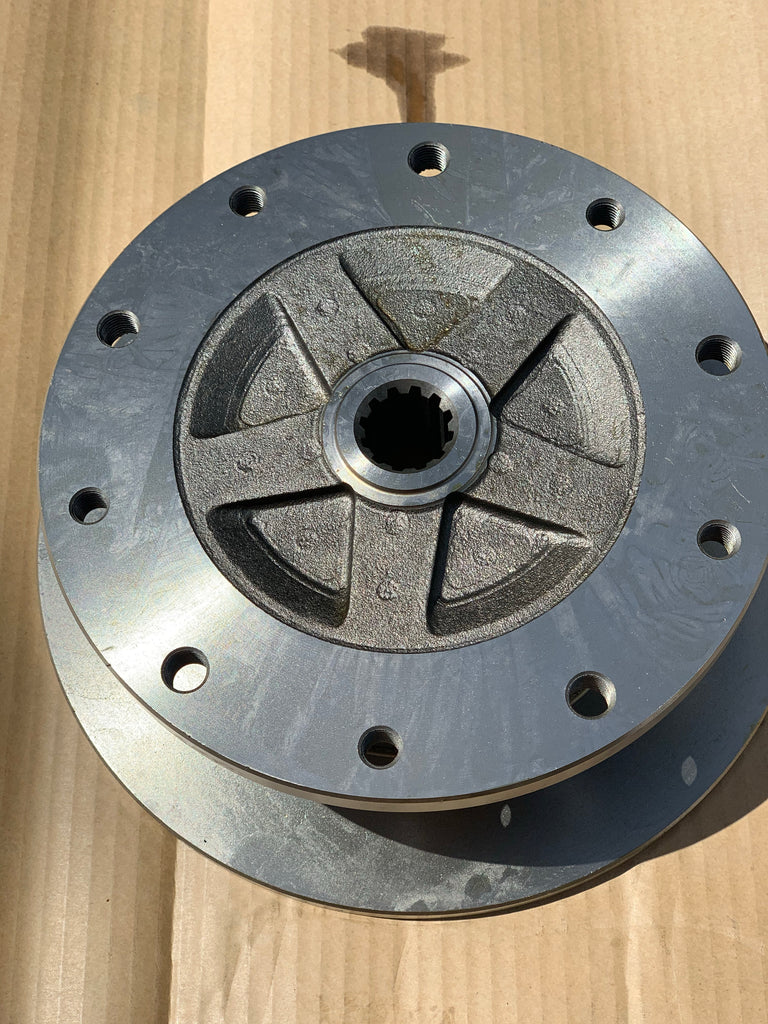

Rear Disc Brake Rotor (Wide Track) For Classic Type 1 Vw Bug, Ghia.
Application:
Bug 1958 -1968 Swing Axle With Empi Disc Brakes Listed Below
Karmann Ghia 1956-1968 Swing Axle With Empi Disc Brakes Listed Below
Bug 1968 Thru 1979 I.R.S. With Empi Disc Brakes Listed Below Requires Empi Spacer #22-5281-7
Super Beetle 1971-1979 I.R.S With Empi Disc Brakes Listed Below Requires Empi Spacer #22-5281-7
Karmann Ghia 1968-1974 I.R.S With Empi Disc Brakes Listed Below Requires Empi Spacer #22-5281-7
Replacement Rotor For:
Empi Disc Brake Kit 22-2927
Empi Disc Brake Kit 22-2927-F
Empi Disc Brake Kit 22-2928
Empi Disc Brake Kit 22-2928-F
Empi Disc Brake Kit 22-2929
Empi Disc Brake Kit 22-2929-F
Empi Disc Brake Kit 22-2930
Empi Disc Brake Kit 22-2930-F
Specs:
Double Drilled 5 Lug X 205mm Vw Lug Bolt Pattern (12mm X 1.5 Threads)
Double Drilled 5 Lug X 205mm Vw Lug Bolt Pattern (14mm X 1.5 Threads)
11" Overall Diameter
3-1/2" Depth
Note: Short Spline Type Rotor For Swing Axle. Can Also Be Used With I.R.S. 1968 Thru 1979 Requires Empi Spacer #22-5281-7 For I.R.S. Applications
Sold Individually
* Some European assembled 65/66/67 models may differ, please ask if you are unsure.
Our Reference: 22-2973-b
Located: Row 38
